Article 17 U.K. Requirements for type B synchronous power-generating modules

1. Type B synchronous power-generating modules shall fulfil the requirements listed in Articles 13, except for Article 13(2)(b), and 14.

2. Type B synchronous power-generating modules shall fulfil the following additional requirements relating to voltage stability:

(a) with regard to reactive power capability, the relevant system operator shall have the right to specify the capability of a synchronous power-generating module to provide reactive power;

(b) with regard to the voltage control system, a synchronous power-generating module shall be equipped with a permanent automatic excitation control system that can provide constant alternator terminal voltage at a selectable setpoint without instability over the entire operating range of the synchronous power-generating module.

3. With regard to robustness, type B synchronous power-generating modules shall be capable of providing post-fault active power recovery. The relevant TSO shall specify the magnitude and time for active power recovery.

Article 18 U.K. Requirements for type C synchronous power-generating modules

1. Type C synchronous power-generating modules shall fulfil the requirements laid down in Articles 13, 14, 15 and 17, except for Article 13(2)(b) and 13(6), Article 14(2) and Article 17(2)(a).

2. Type C synchronous power-generating modules shall fulfil the following additional requirements in relation to voltage stability:

(a) with regard to reactive power capability, the relevant system operator may specify supplementary reactive power to be provided if the connection point of a synchronous power-generating module is neither located at the high-voltage terminals of the step-up transformer to the voltage level of the connection point nor at the alternator terminals, if no step-up transformer exists. This supplementary reactive power shall compensate the reactive power demand of the high-voltage line or cable between the high-voltage terminals of the step-up transformer of the synchronous power-generating module or its alternator terminals, if no step-up transformer exists, and the connection point and shall be provided by the responsible owner of that line or cable;

(b) with regard to reactive power capability at maximum capacity:

(i)

the relevant system operator in coordination with the relevant TSO shall specify the reactive power provision capability requirements in the context of varying voltage. For that purpose the relevant system operator shall specify a U-Q/P_max-profile within the boundaries of which the synchronous power-generating module shall be capable of providing reactive power at its maximum capacity. The specified U-Q/P_max profile may take any shape, having regard to the potential costs of delivering the capability to provide reactive power production at high voltages and reactive power consumption at low voltages;

(ii)

the U-Q/P_max-profile shall be specified by the relevant system operator in coordination with the relevant TSO, in conformity with the following principles:

• the U-Q/P_max-profile shall not exceed the U-Q/P_max-profile envelope, represented by the inner envelope in Figure 7,

• the dimensions of the U-Q/P_max-profile envelope (Q/P_max range and voltage range) shall be within the range specified for each synchronous area in Table 8, and

• the position of the U-Q/P_max-profile envelope shall be within the limits of the fixed outer envelope in Figure 7;

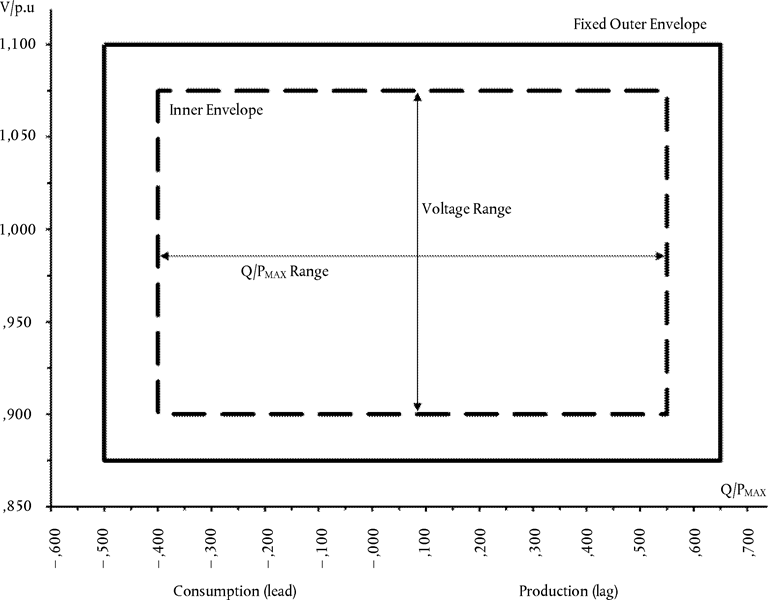

Figure 7F1

U-Q/P_max-profile of a synchronous power-generating module

The diagram represents boundaries of a U-Q/P_max-profile by the voltage at the connection point, expressed by the ratio of its actual value and the reference 1 pu value, against the ratio of the reactive power (Q) and the maximum capacity (P_max). The position, size and shape of the inner envelope are indicative.

Table 8

Parameters for the inner envelope in Figure 7

Synchronous area	Maximum range of Q/Pmax	Maximum range of steady-state voltage level in PU
F2 . . .	F2 . . .	F2 . . .
F3 . . .	F3 . . .	F3 . . .
Great Britain	[F4 0.95]	[F5 0.225]
F6 . . .	F6 . . .	F6 . . .
F7 . . .	F7 . . .	F7 . . .

(iii)

the reactive power provision capability requirement applies at the connection point. For profile shapes other than rectangular, the voltage range represents the highest and lowest values. The full reactive power range is therefore not expected to be available across the range of steady-state voltages;

(iv)

the synchronous power-generating module shall be capable of moving to any operating point within its U-Q/P_max profile in appropriate timescales to target values requested by the relevant system operator;

(c) with regard to reactive power capability below maximum capacity, when operating at an active power output below the maximum capacity (P < P_max), the synchronous power-generating modules shall be capable of operating at every possible operating point in the P-Q-capability diagram of the alternator of that synchronous power-generating module, at least down to minimum stable operating level. Even at reduced active power output, reactive power supply at the connection point shall correspond fully to the P-Q-capability diagram of the alternator of that synchronous power-generating module, taking the auxiliary supply power and the active and reactive power losses of the step-up transformer, if applicable, into account.
